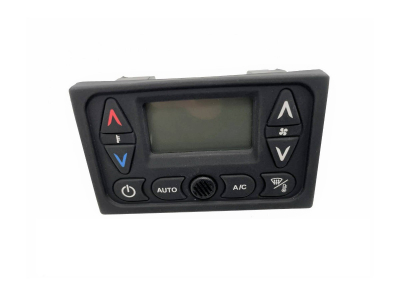

CLIMATRONIC HVAC HDL AISON
This particular line of control units was developed for use in small sections available on the vehicle dashboard.
FUNCTIONAL OVERVIEW:
- Temperature control knob.
- Control knob air flow with automatic mode position.
- Seven buttons.
- Temperature control button +/-.
- Outside temperature button.
- 3 Speed ventilation +/- button.
- A/C button.
- Outside temperature.
- Fully backlit.
Mathematical SW model developed, receives information from 3 different temperature sensors:
- Passenger side temperature sensor (interior).
- Outside air sensor (external).
- Mixed air sensor.
- Antifreeze sensor (on request).
- Possibility of controlling a heating circuit water recirculation pump.
- On-board diagnostics with error code on display.
- Pressure switch failure.
- The control unit is supplied with the display in °C.
- The user can easily change the button to °F.
- Available in 12V and 24V.
Product specifications
| Version code 12V | U15CE |
| Version code 24V | U14CE |
| Volt | 12V - 24V |
